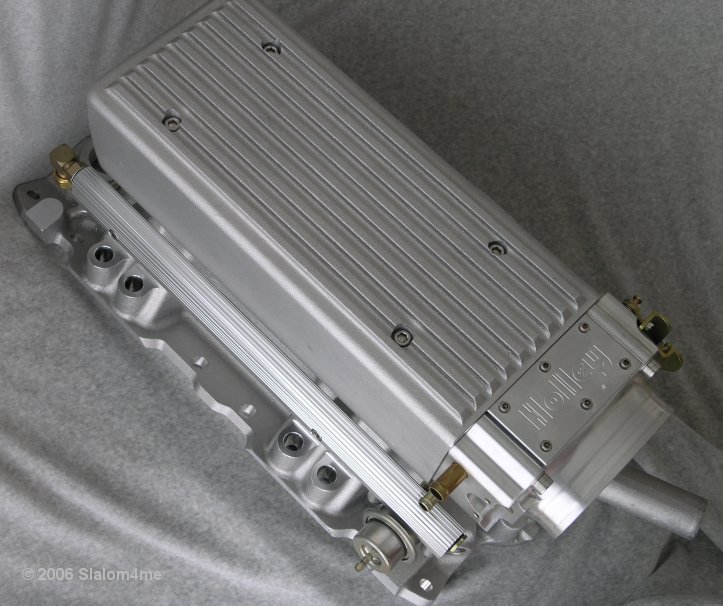

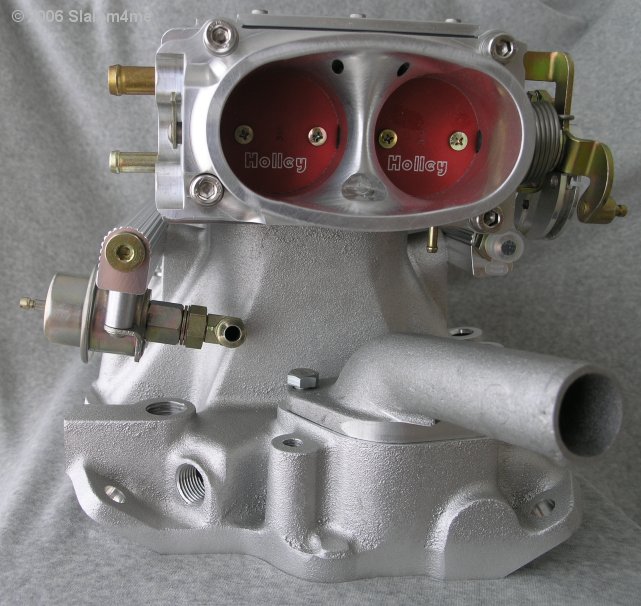

Holley Stealth Ram (#7540)
.
** ---------------------------- **
.
** ---------------------------- **
** ---------------------------- **
** ---------------------------- **
.
** ---------------------------- **
** ---------------------------- **
** ---------------------------- **
Attention: Check your year to determine whether the OEM supply & return
fittings are 16mm and 14mm or if they are 16mm and 16mm. (The '88 & '89 are
16mm & 16mm.)
** ---------------------------- **
Summit (or your favorite on-line vendor)
1 pc - 7540 $309.95 Holley Intake Manifold
1 pc - 534-186 $225.95 Fuel Rail, Aluminum, Clear Anodized, Universal, with Adjustable Regulator
1 pc - 1205 $14.95 Felpro 1205 Intake Gaskets

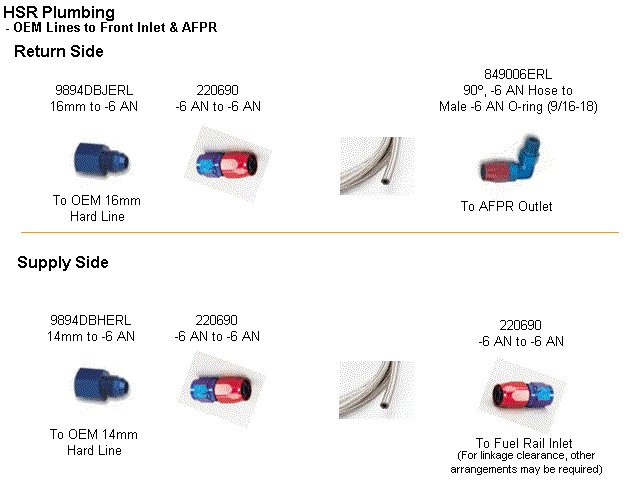

1 pc - 9894DBHERL $9.39 Earls Fitting, Power Fuel Injection Adapter, -6 AN Hose End to 14mm x 1.5 Female
1 pc - 9894DBJERL $9.39 Earls Fitting, Power Fuel Injection Adapter, -6 AN Hose End to 16mm x 1.5 Female
1 pc - 849006ERL $26.95 Earls Fitting, Hose End, Swivel Seal, 90 Degree, -6 AN Hose to Male -6 AN O-Ring (AFPR - Return line)
3 pc - 220690 $4.88 Summit Fitting, Hose End, Straight, -6 AN Hose to Female -6 AN, Aluminum, Red/Blue
(** - or > 3 pc - 800106ERL Earl's $6.25)

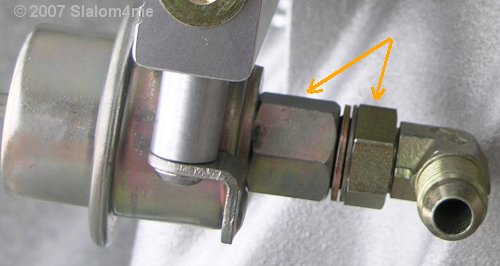

Update: 2007.07.04
The outlet on the AFPR may be an O-ring instead of an NPT style.
If so, I believe that the following fitting should be used instead of the 829006ERL Hose End, Swivel Seal, 90 Degree, -6 AN Hose to Male 1/ 4 in. NPT
1 pc - 849006ERL $26.95 Earls Fitting, Hose End, Swivel Seal, 90 Degree, -6 AN Hose to Male -6 AN O-Ring,
The point of using the Earl's fitting is to eliminate a hose end. The alternative
is to use the Holley-supplied 90º and just buy a fourth #220690 hose end to attach to it
1 pc - 230610 $36.95 Summit Braided Stainless Steel, -6 AN, 10 ft. Length
(** - or > 2 pc - 230603 $13.95 Summit Braided Stainless Steel, -6 AN, 3 ft. Length
2 pc - GAR-J9027 $3.99 Gardner-Westcott Hose Fitting, Straight, Brass, Chrome, 1/ 4 in. Hose Barb, 1/ 8 in. NPT
1 pc - SUM-G3116 $6.95 Summit Fitting, Straight, 3/8 in. Hose Barb to 3/8 in. Male NPT, Steel, Chrome, Set of 3
1 pc - PRM-15173 $13.99 Perma-Cool Fittings, 90 Degree, 3/ 8 in. Hose Barb to 3/ 8 in. Male NPT, Brass, Pair
(** - or > 1 pc - SPE-5946 $10.69, Spectre Industries Fittings, Fuel Fitting 90 Degree (Chrome) 3/8" NPT to 3/8" Barb )
1 pc - SUM-230163 $2.69 Summit Vacuum Hose, Hose, Vacuum, Rubber, Black, 1/4 in. Diameter, 4 ft. Length, Each
1 pc - (N/L at Summit) Vacuum Hose, Hose, Vacuum, Rubber, Black, 3/8 in. Diameter, 4 ft. Length, Each
1 pc - SUM-G1390 $6.95 Summit Vacuum Line Cap Kits. Assmnt of 20 pc
1 pc - 26140 $3.95 Moroso Distributor Gear Shim Kit for 1/2" dist shaft. Set of 5
1 pc - 91101 $264.69 NGK Powerdex AFX Air Fuel Monitors. Includes bung & plug.
Optional (ie: spares to mount for other vehicles)
1 pc - 3735 $8.95 Innovate Oxygen Sensor Bung and Plug, Weld-In, 18mm, Kit
(** - or > 1 pc - 91301 $9.69 NGK Weld-in Oxygen Sensor Bungs and Plugs
** ---------------------------- **
TPiS
1 pc - TPiS Thermostat housing for MiniRam (works with OEM 1-1/4" upper rad hose.)
** ---------------------------- **
Jim's Performance
1 pc - HEI to Small Dist Conversion Plug $19.95
1 pc - Small Dist External Coil to Module Jumper $12.95 (Same as ACDELCO #PT166 $13.09 from RockAuto)
1 pc - Small Dist External Coil Feed Plug $12.95 (Same as ACDELCO #PT1909 $14.51 from RockAuto)
** ---------------------------- **
Rock Auto
1 pc - ACDELCO #PT166 $13.09 Ignition Coil-Ign Connector, Grey Plug (GM #12101896, Standard Motor Prod #S562 )
1 pc - ACDELCO #PT1909 $14.51 Ignition Coil-12 VDC & Tach pigtail, Black Plug (GM #88860464, Standard Motor Prod #S563)
1 pc - ACDELCO #19052845 $33.99 GEAR,DISTR SHF HARDENED GEAR FOR STEEL CAM SHAFT [Small Cap - .425”].
(** - NOT ACDELCO #10456413 $27.46 GEAR,DISTR SHF HARDENED GEAR FOR STEEL CAM SHAFT [Large Cap - .491”].)
1 pc - ACDELCO #D503A $45.79 Ignition Coil (GM #12498334)
1 pc - ACDelco #10046033 $??? Coil-to-manifold bracket (shows 'discontinued', but was available from Chris@Superior as of summer '07)
(** - or > 1 pc - ACDelco #1987910 $10.33 Ignition Coil Wall Mounting Bracket
1 pc - ACDELCO #D447 $4.10 Distributor Rotor (GM #10496798)
1 pc - ACDELCO #D303A $22.79 Distributor Cap (GM #10477841)
1 pc - ACDELCO #316B $10.96 IGN COIL WIRE COIL-to-DIST-W/NIPPLE ENDS 12 INCH LONG (GM #12036972)
(** - or > 1 pc - ACDELCO #328N $12.74 IGN COIL WIRE COIL-to-DIST-W/NIPPLE ENDS 8 INCH LONG (GM #12073984)
** ---------------------------- **

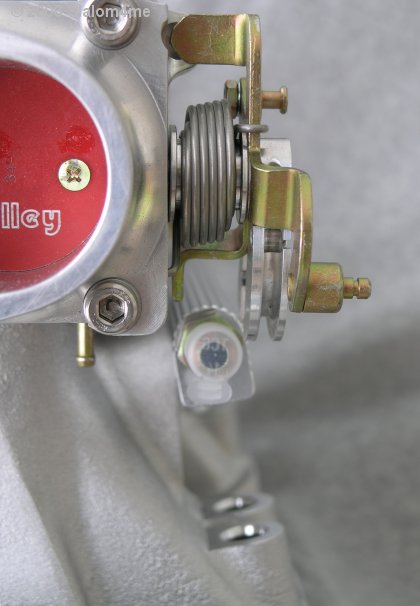

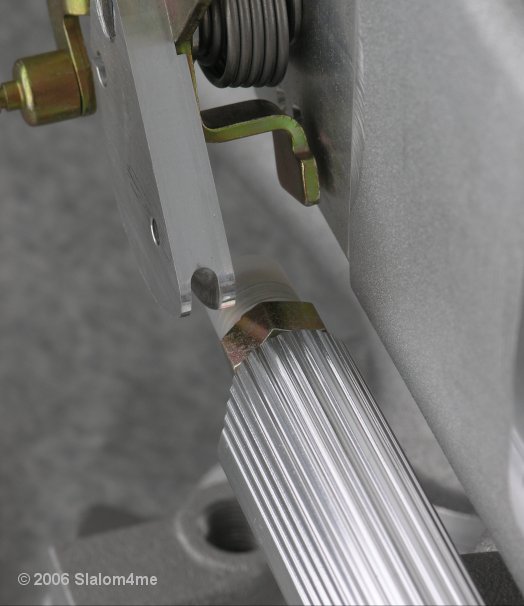

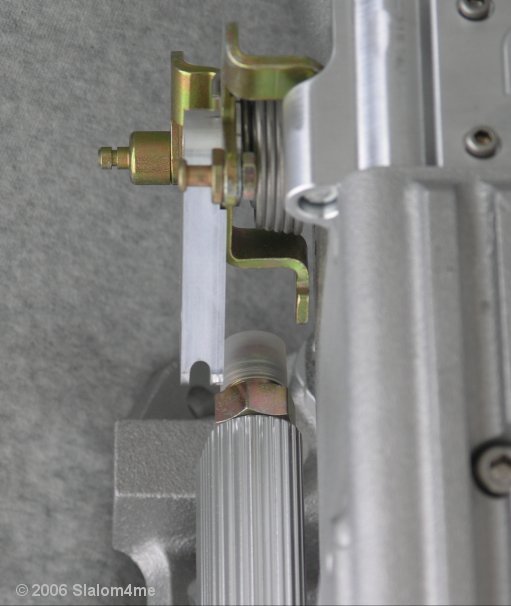

Bracket for Throttle Cable
The OEM bracket can be modified to work.
Holley/Weiand's instructions list part numbers for GM and Lokar brackets.
No reports about these brackets in use have been seen, the Lokar brackets are
available through Summit and images of them suggest they require the Lokar cables
GM
1 pc - 14084305 $10.92 TPI Throttle Cable Bracket
1 pc - 14083307 ???? TPI Throttle Cable Bracket (discontinued)
Optional or required for GM bracket?
1 pc - 14080202 $15.54 Matching throttle cable
Lokar
TCB-40TP1 TUNED-PORT BILLET ALUMINUM BRACKET SINGLE STUD (Stud has one cable hole)
TCB-40TP2 TUNED-PORT BILLET ALUMINUM BRACKET DOUBLE STUD (Stud has two cable holes)
TCB-40TP3 TUNED-PORT BILLET ALUMINUM BRACKET TRIPLE STUD (Stud has three cable holes)
TCB-40SP - does not appear on Lokar's site - discontinued?
Another possiblity is the bracket for the LPE/Accel Super Ram
1 pc - ACC-74200 $25.69 Carburetor Throttle Bracket, SuperRam
** ---------------------------- **
Tuning Software
TunerPro & TunerPro RT - Shareware: $30 donation suggested
Mark Mansur's Site
Craig Moates Site
DataMaster by TTS Power Systems: $119
I believe an '88 requires 'DM35x32 - Complete Installation'
A caution about DataMaster - TTS reportedly will not provide another
install code at no charge if you happen to change machines or have
a drive failure.
ALDL OBD1 Cable: A Serial cable is recommended over a USB-style cable
ALDLCable.com
** ---------------------------- **
Fuel Pressure

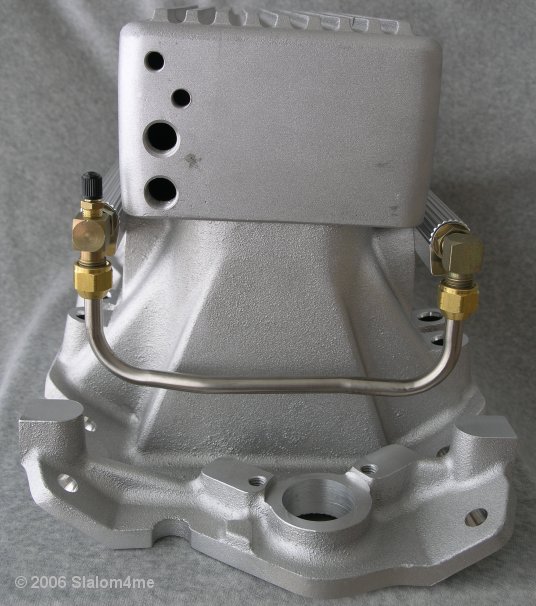

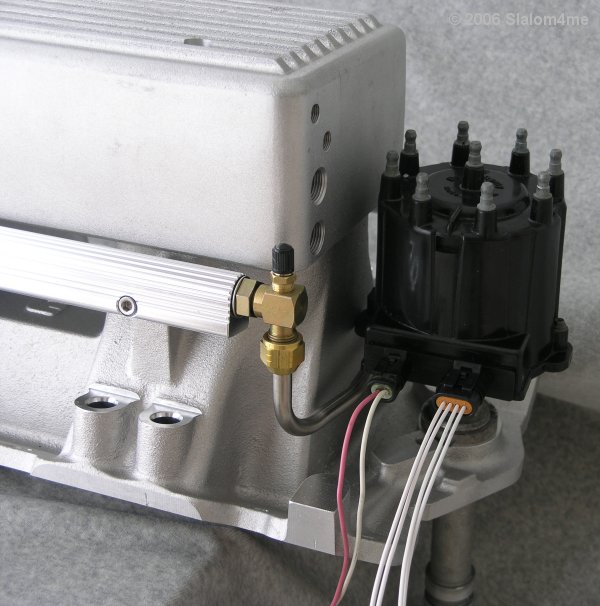

The Schrader valve (which should be located in a fitting at the
end of one of the fuel rails) is the point where fuel pressure
is measured. See picture above showing rear of plenum.
This Schrader valve is all that is required for SETTING the fuel
pressure - attach the gauge, adjust pressure at the AFPR, remove
gauge and cap the Schrader.
For testing, I have a Tool Aid kit - #33980, IIRC. $67 from SJ Discount
If you want to MONITOR fuel pressure, then a tee fitting could
be inserted between the Schrader at the 90º fitting for the

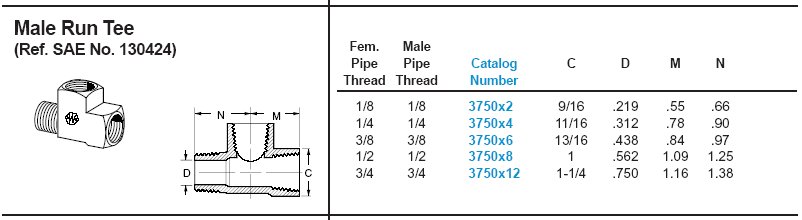

fuel rail. Ideally, your tee would have a male end and two
female ends - this is known as a 'Male Run Tee' in Weatherhead
fittings terminology. The Weatherhead catalog number for a
1/8" pipe Male Run Tee in brass is "3750x2"
No fuel lines in the cockpit, please.
If you MUST run a direct reading FP gauge so you can monitor FP while
driving, then mount it outside on the hood in front of the windshield ahead
of the cockpit.
A FAR SAFER method is to use an electric fuel pressure gauge (EFPG).
Stewart-Warner offers EFPG's in 0-100 PSI readings.
One is the Seaworthy #83042 2-1/16" dia White bezel/White face/Black numbers
and needle. This gauge requires the SW #82893 sender.
Stewart-Warner Seaworthy Gauges
A thread on CF - fuel pressure gauge.
Apparently Mo Bandy had a mechanical gauge with an isolator before switching to
an electric unit. An isolator is a device with a membrane: one fluid (fuel)
is fed to one side of the membrane and a non-flammable fluid is used on the
opposite side. The non-flammable side connects to a gauge in the cockpit. Mo
writes that he has some pictures on his website.
** ---------------------------- **
Fuel System Diagnosis
(From Chart A-7 in 6E3-A-19 of '89 FSM)
Expect fuel seepage/leakage when attaching/removing gauge.
Wrap a shop towel around fitting.
Have an assistant ready with a CO2 fire extinguisher (less mess).
Have a dry chemical extinguisher as a backup.
- Ignition Off, A/C Off
- Install Fuel Gauge
- Ignition 'On' - Fuel pump will run for about 2 sec
- With pump running, fuel pressure should be 40.5-47.0 psi (280-325 kPa)
and hold steady when pump stops
- Start and idle engine at normal operating temp
- Pressure should be lower by 3-10 psi ( 21-69 kPa)
- If not ok, use a MityVac to apply 10 inches of vacuum
to pressure regulator.
- Pressure should drop by 3-10 psi ( 21-69 kPa)
** ---------------------------- **

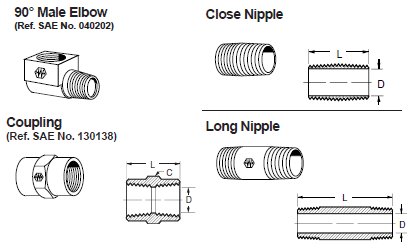

Oil Pressure Sensor Extension Fittings
** ---------------------------- **

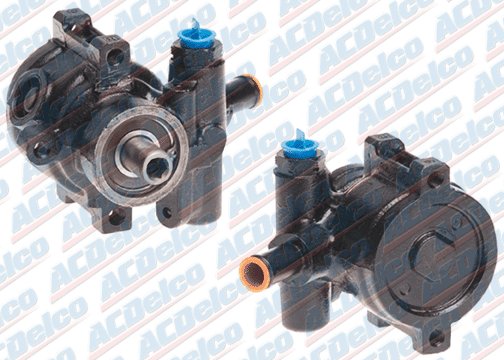

Power Steering Pump
